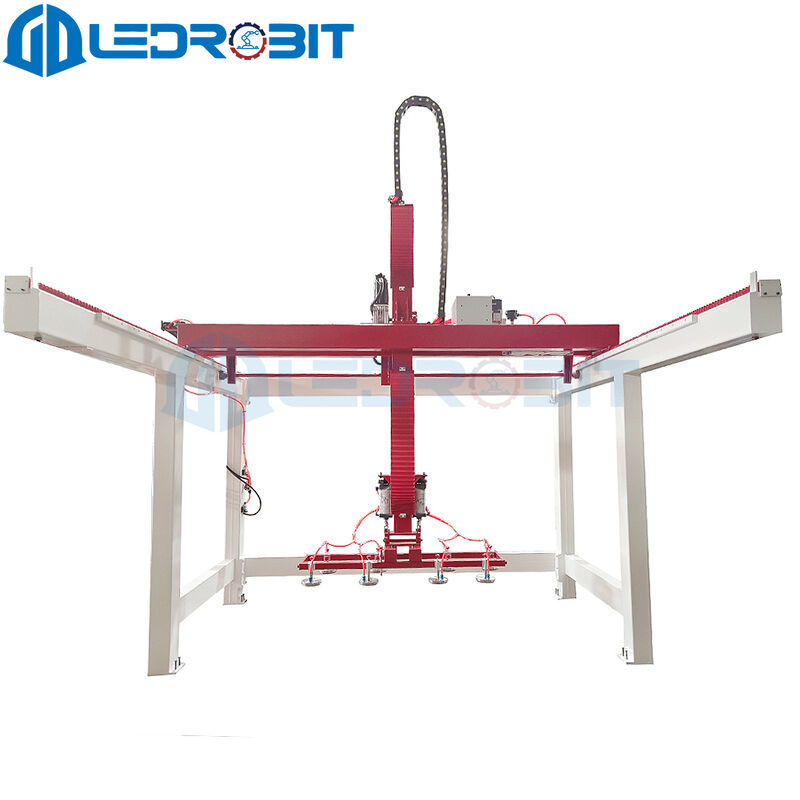

Foamed Ceramic Loader Unloader Touch Screen Loading Unloading Machine
  • Foamed Ceramic Loader Unloader Touch Screen Loading Unloading Machine
Foamed Ceramic Loader Unloader Touch Screen Loading Unloading Machine

Foamed Ceramic Loader Unloader Touch Screen Loading Unloading Machine

Place of Origin China
Brand Name Ledrobit
Certification CE
Product Details
Features:
High Efficiency/High Precision
Operatingtemperature:
-10°C To 50°C
Driving Core:
Servo Motor
Material:
Stainless Steel
Communication Protocol:
Ethernet
Speed:
10 Meters Per Minute
Reach:
Up To 3 Meters Or More
Motor Type:
Servo Motor
Installationtype:
Floor-mounted
Characteristic:
LCD Display, Easy To Operate
Voltage:
220V
End Effectors:
Grippers, Suction Cups
Highlight:

foamed ceramic loading unloading machine

,

touch screen loader unloader machine

,

ceramic loading machine with warranty

Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
15 workdays
Payment Terms
T/T,Western Union
Product Description

Foamed Ceramic Loader Unloader Touch Screen Loading Unloading Machine
Product Attributes
Attribute Value
Material Steel
Key Feature The Direction Can Be Customized
Power Supply 220V/380V
Operating Mode Automatic
Power Source Electric
End Gripper Clamp
Control System PLC
Safety Features Emergency Stop Button, Safety Sensors
Warranty 1 year
Capacity 300KG-3000 Kg, Customizable
Main Control Motor Servo Motor
Control Independent Control Box

Foamed Ceramic Loader Unloader | Servo-Driven, Multi-Axis machine for Automatic Handling & Palletizing of Lightweight Panels & Heavy Sheets

Automatically feed and stack foamed-ceramic boards without breakage or bowing. Our Foamed Ceramic Loader Unloader uses gentle vacuum and optional mechanical clamping to handle porous, lightweight panels—and just as easily switches to stone, aluminum, steel, cement, or plywood sheets when your product mix changes.

Key Features
  • Gentle on foamed ceramic - adjustable vacuum level and soft-contact pads prevent surface crushing; optional side-support clamp avoids panel flex.
  • Multi-material flexibility - quick-change end-effector swaps between vacuum, mechanical, or magnetic pads for stone, aluminum, steel, cement board, or wood on the same shift.
  • Auto size recognition - built-in laser sensor reads length, width, and thickness, then places each board on the correct pallet or conveyor lane.
  • Multi-axis motion - standard 3-axis (X-Y-Z) plus optional rotation/tilt; program flat, on-edge, or standing stacks.
  • Servo precision - rack-and-pinion drive delivers smooth acceleration and ±1 mm repeatability, protecting fragile edges.
  • 500 kg+ capacity - rated at 500 kg; heavier loads available on request by upgrading motor and rail size.
  • Harsh-environment build - IP54 cabinet, sealed servo motors, and anti-corrosion paint perform reliably in high dust and humidity.
  • Simple operation - 7-inch LCD touch screen with graphical icons; no PLC knowledge required.
  • Low-cost upkeep - central grease points, easily accessible cable chain, and off-the-shelf bearings keep service quick and inexpensive.
Plug-and-Play Integration

Same floor height as most cutting, polishing, and packaging lines. Connect dry-contact or Ethernet signals for automatic hand-shake; safety light curtains and guarding included.

How to Proceed

Send panel size, weight, and desired stacking pattern. We'll return a dimensioned drawing and turnkey quotation within 24 hours.
