Wooden Board Loading Unloading Machine Customized Wooden Unloading Machinery with LCD
  • Wooden Board Loading Unloading Machine Customized Wooden Unloading Machinery with LCD
  • Wooden Board Loading Unloading Machine Customized Wooden Unloading Machinery with LCD

Wooden Board Loading Unloading Machine Customized Wooden Unloading Machinery with LCD

Product Details
Scope Of Application:
Wood Boards，stone, Steel Etc
Condition:
New
Warranty:
1 Year
Type:
Industrial Robot
Operatingspeed:
5-20 Meters Per Minute
Warrantyperiod:
12 Months
End Effectors:
Suction Cups
Weight:
Approximately 1200 Kg
Special Feature:
2 To 5-axis
Power Supply:
220V/380V
Material:
Metal
Max Lifting Speed:
5 Meters Per Minute
Noiselevel:
< 75 DB
Highlight:

customized wooden unloading machine

,

wooden board loading machine with LCD

,

LCD unloading machinery for wood

Payment & Shipping Terms
Delivery Time
15 workdays
Payment Terms
T/T,Western Union
Product Description

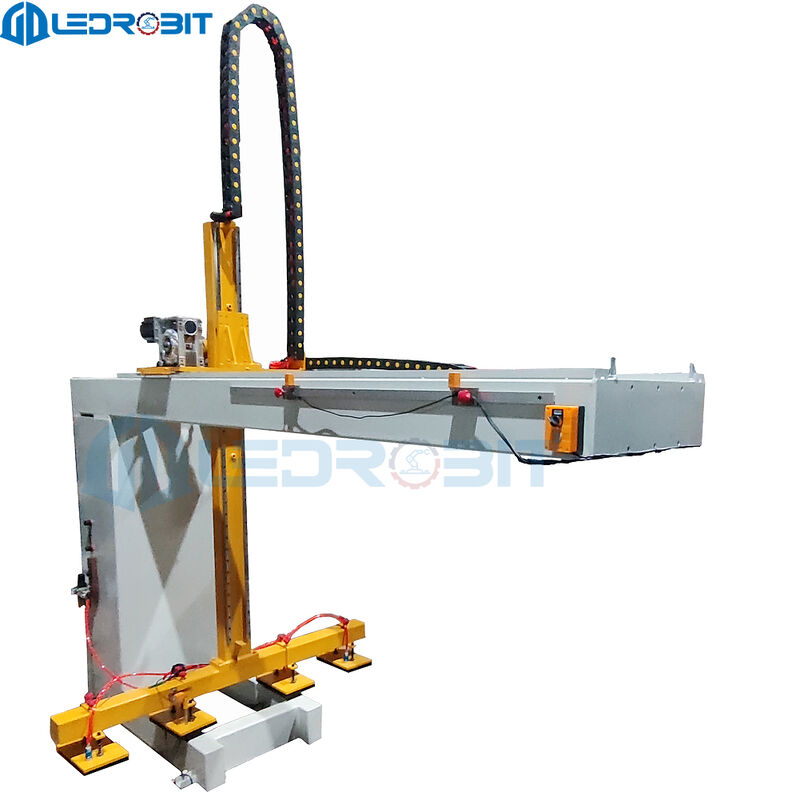

Wooden Board Loading Unloading Machine
Customized Wood Unloading Machinery with LCD Display
Automate your wood processing line with our servo-driven transfer system featuring 300 kg+ lift capacity. This machine seamlessly feeds plywood, MDF, particle board, or solid timber into edge-banders, CNC routers, and polishing machines while eliminating manual lifting requirements.
Automated Material Handling
Our system automatically picks layers from inbound stacks and places finished boards back onto pallets, maintaining continuous operation in your wood-processing facility. The dual-direction cycle loads raw materials and unloads finished parts in one seamless sequence.
Key Features & Specifications
  • Wood-friendly handling: Adjustable vacuum pads and soft-contact clamps prevent surface scratches with optional felt-lined pads for coated panels
  • Heavy-duty capacity: Standard frame rated at 300 kg with higher load options available through servo motor and rail upgrades
  • Precision engineering: Rack-and-pinion drive delivers smooth acceleration and ±1 mm repeatability for delicate edges and joints
  • Industrial durability: IP54 cabinet, sealed bearings, and anti-corrosion paint withstand dusty, humid woodworking environments
  • User-friendly operation: 7-inch LCD touch screen with graphical icons requires no PLC programming knowledge
  • Low maintenance design: Central grease points, accessible cable chain, and off-the-shelf bearings minimize downtime and service costs
Plug-and-Play Integration
Designed with the same floor height as most edge-banders, CNC routers, and polishers. Connect via dry-contact or Ethernet signals for automatic hand-shake operation. Includes safety light curtains and guarding for complete protection.
Next Steps
Provide your board dimensions, weight specifications, and production line layout. We'll return dimensioned drawings and a turnkey quotation within 24 hours to get your automated wood processing system operational quickly.
