Long Distance Loading Unloading Machine Plc Industrial Unloading Machine
  • Long Distance Loading Unloading Machine Plc Industrial Unloading Machine
Long Distance Loading Unloading Machine Plc Industrial Unloading Machine

Long Distance Loading Unloading Machine Plc Industrial Unloading Machine

Product Details
Features:
High Efficiency/High Precision
Loading Speed:
30-60 Sec./piece,50-60 Sec./ Piece
Customized:
Base On Customer's Requirement
Lcd Display Setting:
Include
Frequency:
50Hz
Automationlevel:
Semi-automatic / Fully Automatic Options Available
Reach:
Up To 3 Meters Or More
Capacity:
Up To 2000 Kg
Productname:
Loading Unloading Machine
Color:
Customers' Request,Optional,red
Operation Mode:
Touch Screen
Operating Environment:
Indoor
Special Feature:
2 To 5-axis
End Effectors:
Suction Cups
Highlight:

PLC industrial unloading machine

,

long distance loading machine

,

industrial unloading machine with warranty

Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
15 workdays
Payment Terms
T/T,Western Union
Product Description

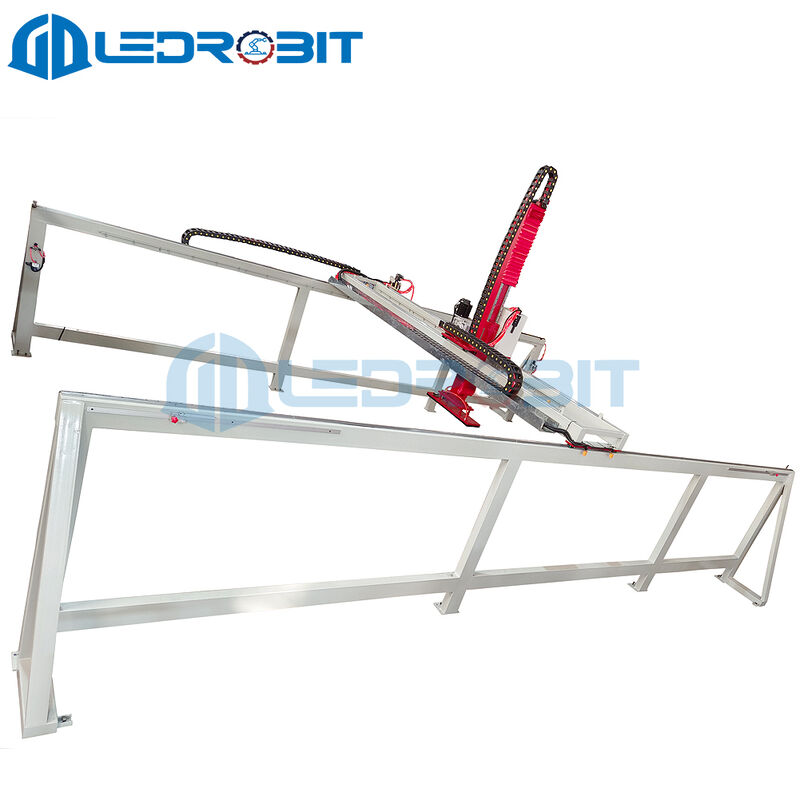

Long Distance Loading Unloading Machine PLC Industrial Unloading Machine
Long-Distance Loading & Unloading Machine | Servo-Driven, Multi-Axis Robot for Extended Stone, Aluminum, Steel, Cement & Wood Handling
When your storage, cutting and packaging areas are spread across the plant, our Long-Distance Loading & Unloading Machine closes the gap. It automatically picks, transports and palletizes large sheets up to several dozen metres away—without forklifts, cranes or extra operators.
Key Features
  • Extended reach - rail lengths from 3 m to 30 m in one piece; splice kits allow unlimited extension for future growth
  • Auto size recognition - built-in laser or vision sensor identifies length, width and height, then places each piece on the correct pallet or conveyor lane
  • Multi-axis motion - standard 3-axis (X-Y-Z) plus optional rotation/tilt; program horizontal, vertical or edge-standing stacks
  • Servo precision - rack-and-pinion drive with absolute encoder delivers smooth travel and ±1 mm repeatability over the full distance
  • 300 kg+ capacity - rated at 300 kg; heavier loads available on request by upgrading motor and rail section
  • Universal handling - swap between vacuum, mechanical or magnetic grippers to move stone, aluminum, steel, cement board or plywood in the same shift
  • Harsh-environment build - IP54 cabinet, sealed servo motors and anti-corrosion paint perform reliably in high dust and humidity
  • Simple operation - 7-inch LCD touch screen with graphical icons; no PLC knowledge required
  • Low-cost upkeep - central grease points, easily accessible cable chain and off-the-shelf bearings keep service quick and inexpensive
Plug-and-Play Integration
Same floor height as most bridge saws, polishers, cement-stone presses and packaging lines. Connect dry-contact or Ethernet signals for automatic hand-shake; safety light curtains and guarding included.
How to Proceed
Send sheet size, weight and travel distance. We'll return a dimensioned drawing and turnkey quotation within 24 hours.
