Products
Our product portfolio includes automatic loading/unloading machines, palletizers, and board sorting systems, designed for materials like stone, aluminum, concrete, and wood, with advanced features such as multi-axis control and visual recognition.
Artificial Curbstone Production Line
Ledrobit provides a CE-certified automated solution for precast concrete kerbstone manufacturers. The complete system combines wet pressing, automatic product unloading, roller conveying, and robotic palletizing into one continuous production workflow. Designed for factories seeking higher production efficiency and reduced manual handling, this Artificial Curbstone Production Line helps manufacturers achieve stable output, consistent product quality, and improved production management.
Traditional kerbstone production often requires manual transfer between pressing, conveying, and stacking processes, which increases labor costs and creates risks of product damage. Ledrobit's automation system replaces these repetitive operations with coordinated mechanical handling, allowing freshly pressed kerbstones to move smoothly from forming to palletizing.
The Artificial Curbstone Production Line can be customized according to product dimensions, factory space, production capacity, and curing requirements. Ledrobit provides complete engineering support, including production line planning, equipment integration, installation, and operator training.

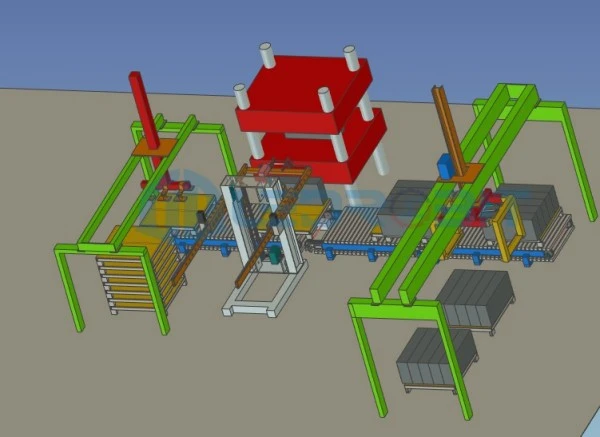

Production Workflow
The complete line is designed around a continuous production process:

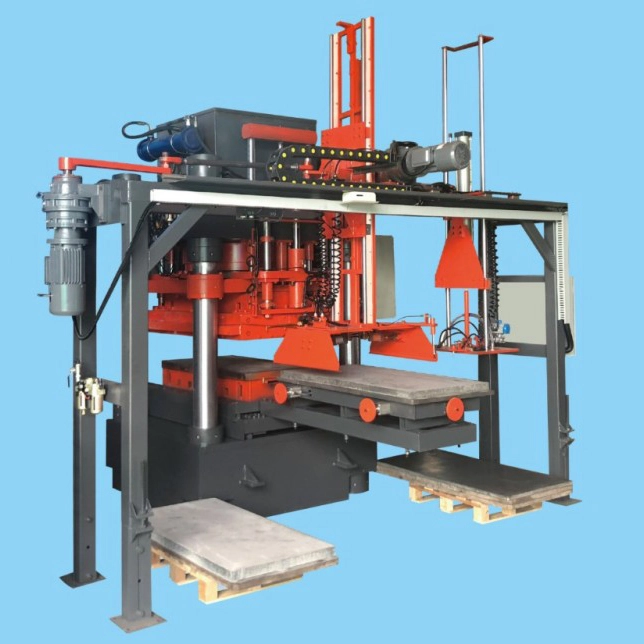

1. Wet Pressing: The forming machine compresses prepared concrete materials into the required kerbstone shape and size.
2. Automatic Unloading: The side-loading telescopic unloader removes freshly pressed kerbstones from the forming machine and transfers them onto the conveyor system.
3. Roller Conveying: The conveyor transports products safely and continuously toward the stacking area.
4. Automatic Palletizing: The palletizer arranges kerbstones layer by layer at the designated position for curing or further processing.
System Components
| Equipment Unit | Main Function |
| Wet-method forming press | Automatically forms precast concrete kerbstones through pressing |
| Side-mounted telescopic unloader | Transfers freshly pressed products from the press to the conveyor |
| Roller conveyor system | Provides continuous product transportation between production stations |
| Automatic palletizer | Stacks finished kerbstones according to preset arrangements |
| Production line design | Customized layout planning based on factory conditions |
Automatic Handling After Pressing

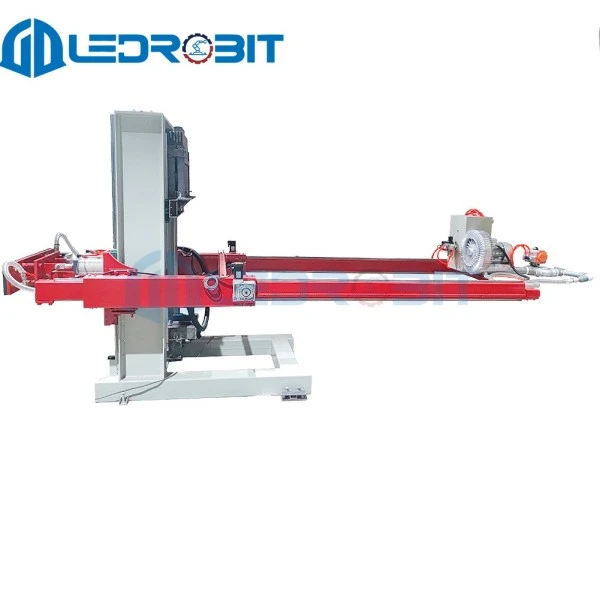

Freshly pressed concrete kerbstones require careful handling before curing. The side-mounted telescopic unloading system is designed to remove products from the press smoothly while reducing manual contact with newly formed units.
The compact side extraction structure allows the conveyor line to be arranged efficiently, helping factories optimize workshop space while maintaining continuous production.
Stable Conveying and Stacking
The roller conveyor provides a reliable connection between forming and palletizing stations. Products are transferred at a controlled speed, reducing unnecessary movement and improving production consistency.

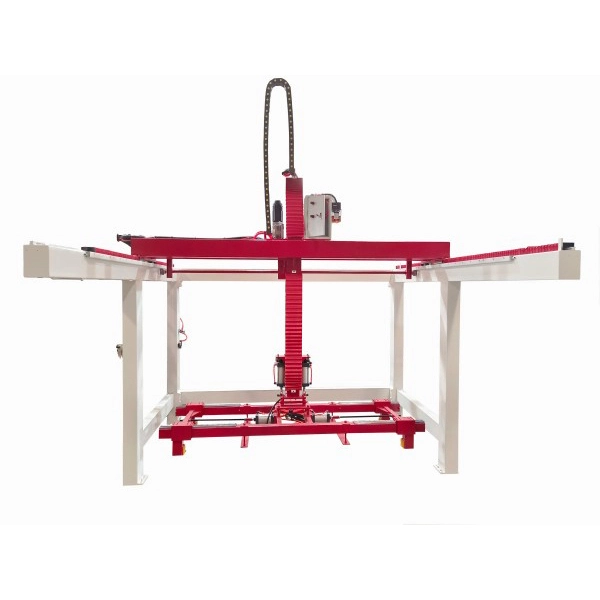

The automatic stacking system places kerbstones according to predefined patterns, creating organized pallets that are convenient for curing, storage, transportation, or additional processing.
Customized Line Design
Every precast concrete factory has different workshop layouts, product sizes, and production targets. Ledrobit provides customized solutions based on:
- Kerbstone dimensions and weight
- Required production capacity
- Factory floor space
- Existing production equipment
- Product handling and curing requirements
Before manufacturing, Ledrobit engineers can design the complete production layout to ensure smooth connection between each processing unit.
Automation Benefits
The Artificial Curbstone Production Line provides manufacturers with several practical advantages:
- Continuous operation from forming to palletizing
- Reduced dependence on manual material handling
- Improved product arrangement and stacking consistency
- Lower risk of damage during transfer
- Easier production management and workforce planning
- Expandable integration with future automation equipment
Technical Support and Services
Ledrobit provides complete support throughout the project lifecycle:
Engineering Design: Production line planning according to customer requirements.
Customization: Equipment configuration adjustment based on product specifications and factory conditions.
Installation: Overseas installation, commissioning, and operator training are available.
OEM/ODM: Customized cooperation is supported for different market requirements.
Why Choose Ledrobit
Ledrobit specializes in automated equipment solutions for stone and concrete product manufacturers. With CE-certified production standards and professional automation engineering capability, Ledrobit helps customers build efficient and reliable manufacturing systems.
From individual machines to complete factory automation projects, Ledrobit provides integrated solutions covering equipment supply, layout design, installation, and technical support.
Contact Ledrobit for a customized production line solution:
Email: sales@ledrobit.com
Tel: +86-13599995268
Application
The system is suitable for manufacturers producing:
- Precast concrete kerbstones
- Artificial curbstones
- Concrete landscape products
- Other wet-pressed concrete components
FAQ
Q: What equipment is included in the complete line?
A: The complete system includes a wet pressing machine, automatic unloading unit, roller conveyor, palletizer, and customized production line layout design.
Q: Can the line be customized for different kerbstone sizes?
A: Yes. Ledrobit can adjust equipment configuration and layout according to product dimensions, weight, and production requirements.
Q: Does the production line require manual operation?
A: The system is designed for automatic operation from pressing to palletizing, significantly reducing manual handling between stations.
Q: Do you provide installation services?
A: Yes. Ledrobit provides overseas installation, commissioning, and operator training services.
Q: Does the equipment meet international standards?
A: Yes. The production line complies with CE certification requirements.
