Automatic Cuber Stacker for Concrete Paver Blocks
The LEDROBIT LDPV300 Automatic Cuber Stacker for Concrete Paver Blocks is designed for automated loading, transferring, and stacking of concrete pavers in modern production lines. Equipped with sponge vacuum suction, servo motor drive, and PLC control, the machine provides stable handling for smooth and textured pavers with a maximum load capacity of 300 kg.
The LEDROBIT Automatic Cuber Stacker for Concrete Paver Blocks is an automated vacuum stacking system designed to improve the handling efficiency of concrete paver production lines. The LDPV300 uses sponge suction pads, servo motor control, and PLC automation to pick up, transfer, and stack individual pavers or complete layers with stable positioning.
With a maximum load capacity of 300kg and customizable suction configurations, the machine can handle different paver sizes, surface textures, and stacking arrangements. Designed according to applicable CE requirements, LEDROBIT provides customized automation solutions for concrete paver manufacturers looking to reduce manual labor and improve production consistency.
Automatic Paver Stacking Solution
The Automatic Cuber Stacker for Concrete Paver Blocks is developed for manufacturers that need efficient handling after molding, surface treatment, polishing, or cutting processes. Traditional manual stacking requires multiple workers and may cause uneven stacking, product damage, or inconsistent production rhythm.
The LEDROBIT LDPV300 automates the pickup, transfer, positioning, and stacking process. Through vacuum suction technology and intelligent control, it helps factories create a more organized production workflow while reducing repetitive manual operations.
Technical Specifications
| Brand | LEDROBIT |
| Model | LDPV300 |
| Product Name | Automatic Cuber Stacker for Concrete Paver Blocks |
| Handling Method | Vacuum suction |
| Suction Pad Material | Sponge |
| Maximum Load Capacity | 300 kg |
| Maximum Handling Size | 1200 × 900 mm |
| Minimum Handling Size | 300 × 300 mm |
| Maximum Lifting Stroke | 1450 mm |
| Maximum Horizontal Travel | 3000 mm |
| Main Drive | Servo motor |
| Control System | PLC |
| Specified Cycle Time | 20 seconds per cycle |
| Output Power | 4 kW |
| Placement Orientation | Horizontal and vertical |
| Suction Pad Customization | Available |
| Vacuum Lifting Plate | Customizable |
| Compliance | Designed and manufactured according to applicable CE requirements |
| Warranty | One year |
Key Features
Stable Vacuum Handling

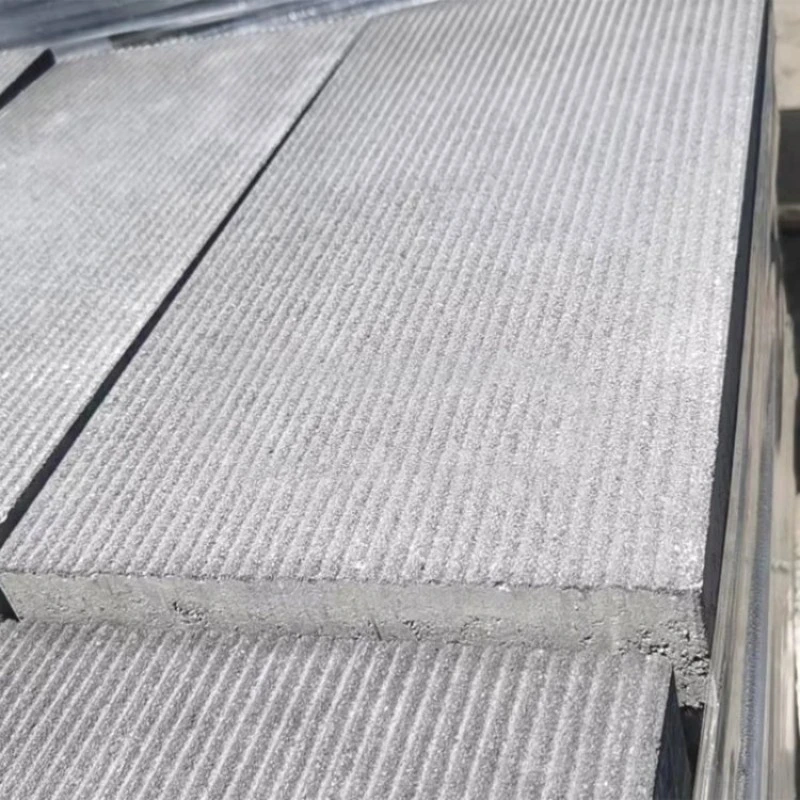

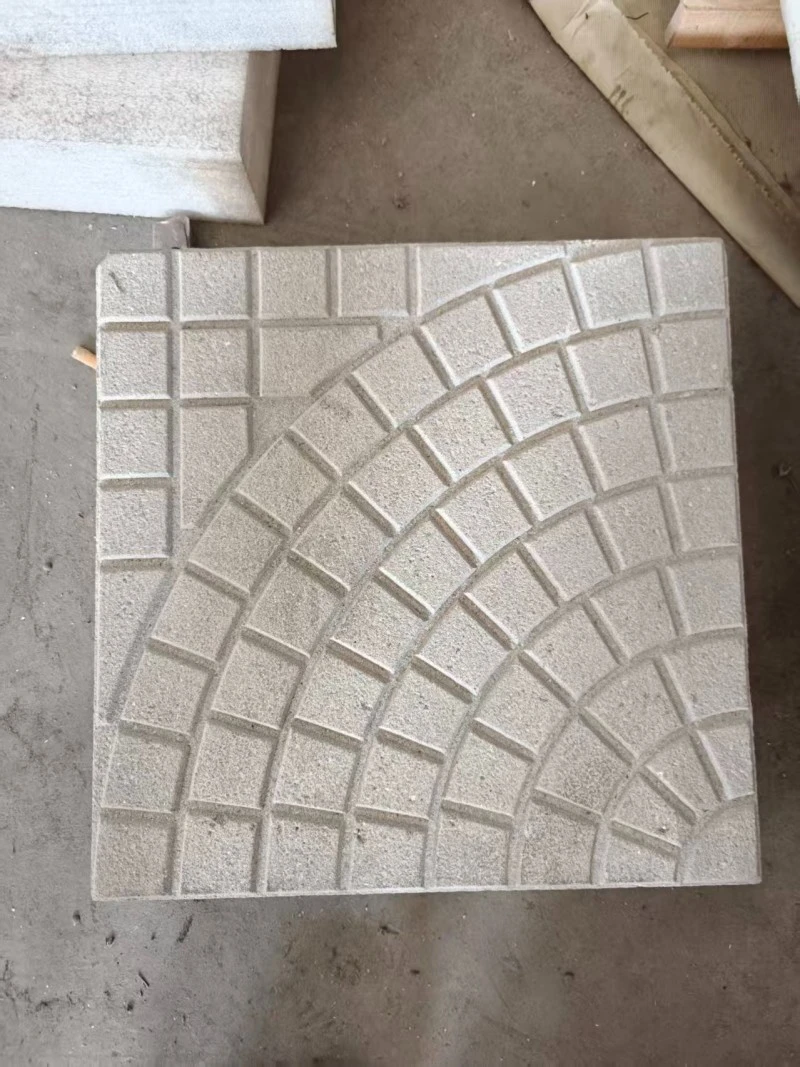

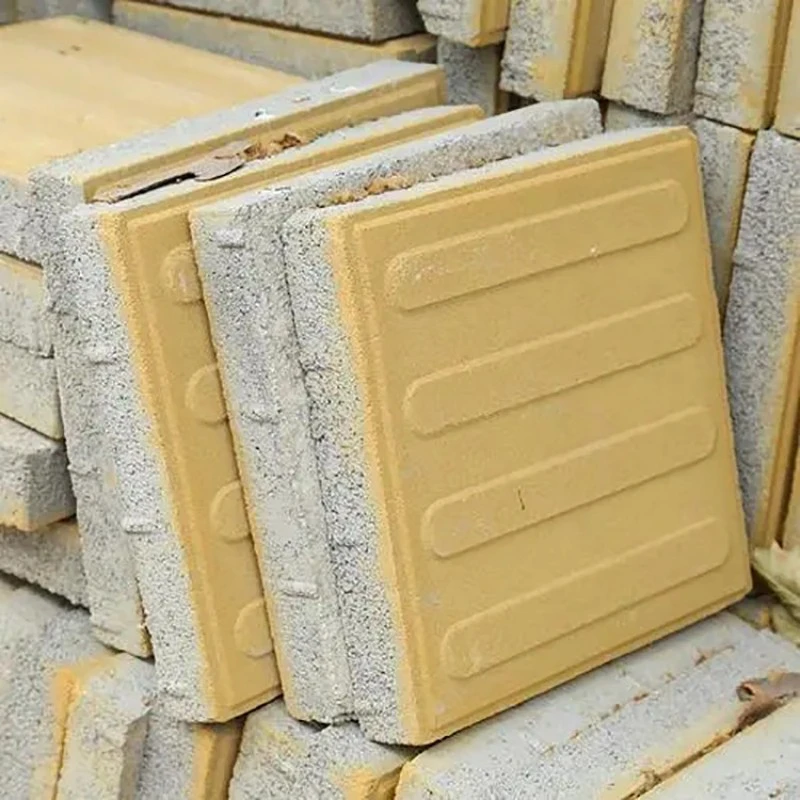

The LDPV300 uses sponge suction pads designed for concrete paver surfaces. The flexible pad structure helps adapt to different surface conditions, including textured and decorative pavers, providing reliable pickup during transfer.
Flexible Stacking Configuration

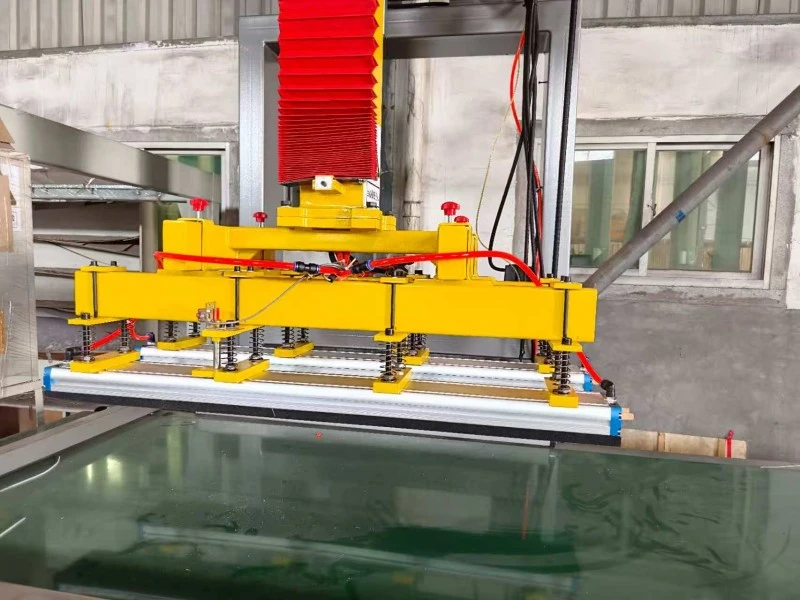

Different customers require different stacking patterns depending on storage, packaging, and transportation methods. The suction pads and vacuum lifting plate can be customized according to paver size, layer arrangement, and production requirements.

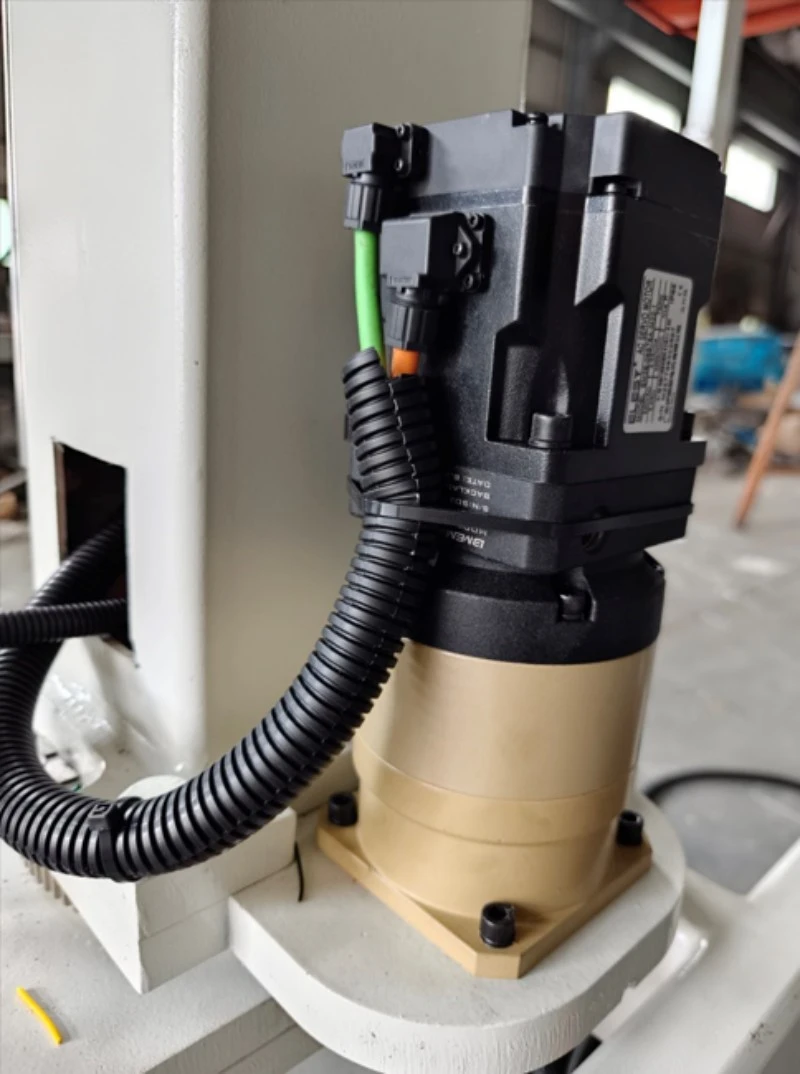

Precise Servo Movement
The servo drive system controls lifting, horizontal movement, rotation, and placement with high positioning accuracy. Smooth acceleration and deceleration help reduce movement impact and maintain consistent stacking quality.
PLC Controlled Automation
The PLC system manages the complete handling sequence, including vacuum pickup, transfer, positioning, and stacking. Operators can monitor the process while reducing repetitive manual handling work.

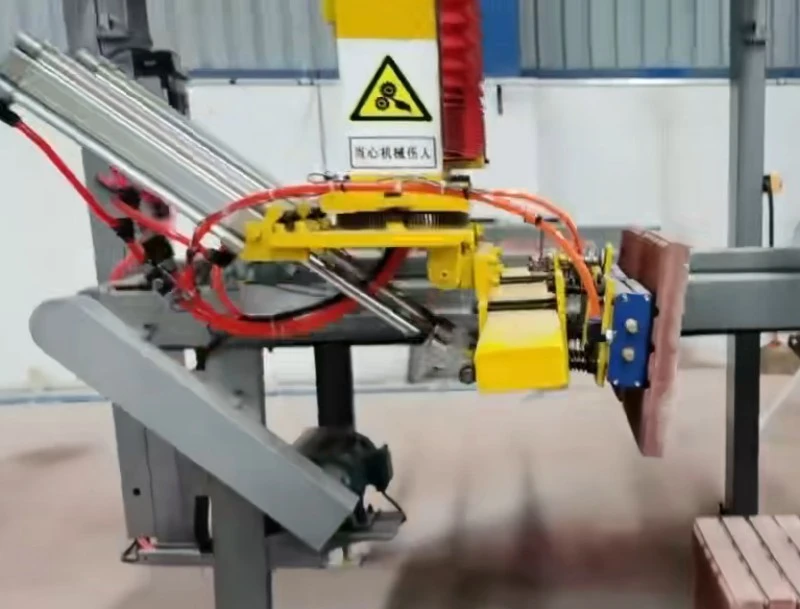

Supports Different Placement Directions
The machine supports both horizontal and vertical placement modes. This flexibility allows the equipment to match different production line directions, storage requirements, and packaging methods.

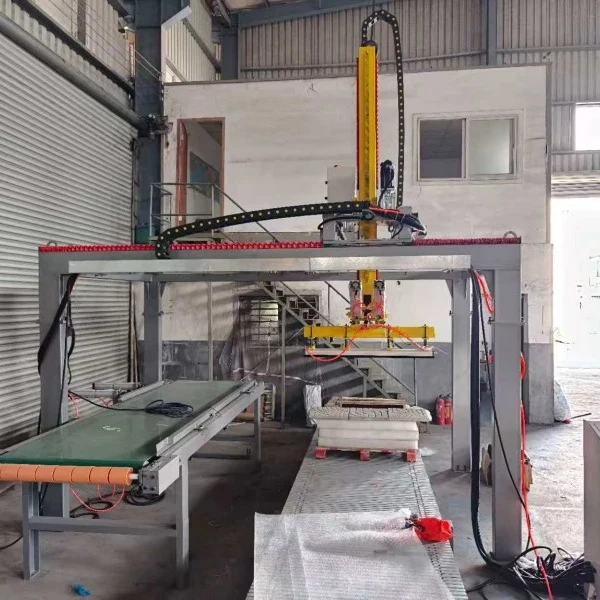

Integration with Production Lines
The LDPV300 can connect with compatible shot blasting machines, polishing equipment, cutting systems, and conveyor lines. The handling sequence can be adjusted according to the existing factory workflow.
Durable Structure for Factory Use

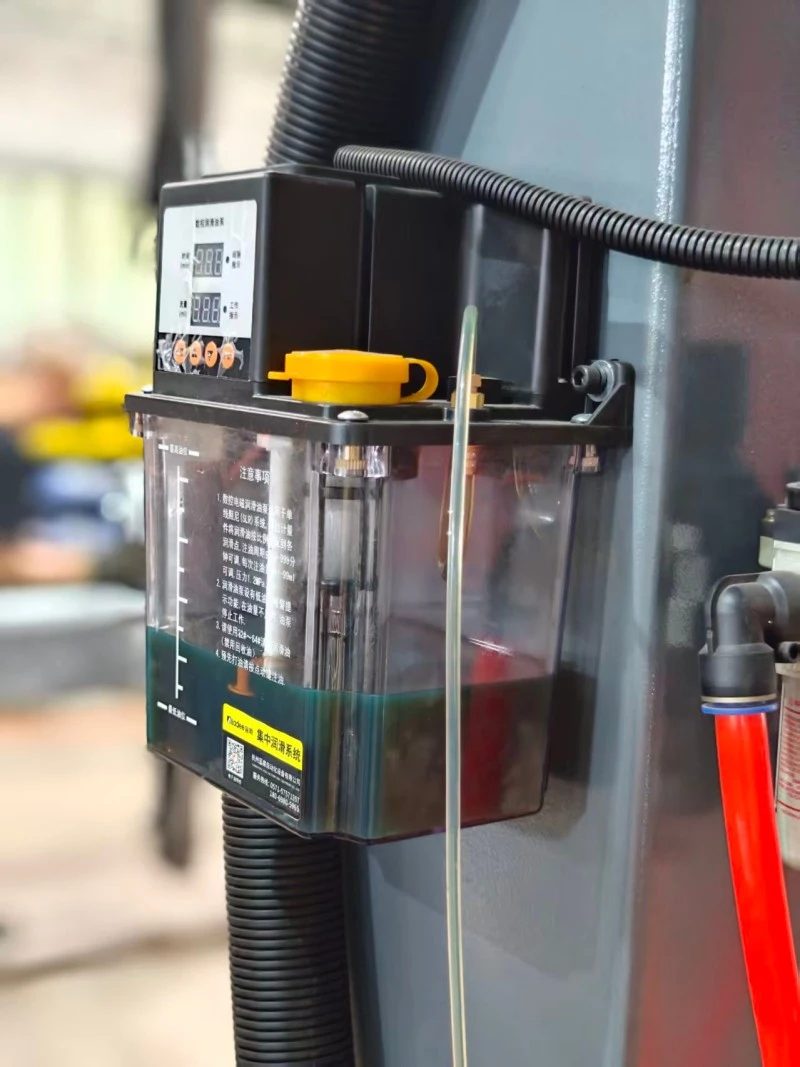

The machine uses treated carbon steel slide rails, protective covers, and automatic lubrication systems to reduce wear caused by concrete dust and long-term operation. These designs help maintain stable performance in industrial environments.
CE-Compliant Manufacturing
LEDROBIT designs and manufactures the LDPV300 according to applicable CE requirements. The equipment structure, electrical system, and operating functions are developed for international market applications.
How Automatic Stacking Improves Production Efficiency
For concrete paver manufacturers, stacking is an important step between production and shipment. An efficient stacking process can directly influence production speed, storage organization, and labor requirements.
Reduces Manual Labor Requirements
Manual stacking of concrete pavers requires repeated lifting and alignment work. Automated handling reduces physical labor and allows operators to focus on production monitoring and equipment management.
Maintains Consistent Stack Quality
Uneven manual stacking may affect storage stability and transportation safety. The automated positioning system helps maintain aligned layers and consistent stacking results.
Matches Continuous Production Lines
When connected with upstream equipment, the machine helps maintain a continuous production rhythm from surface treatment to finished product storage.
Improves Factory Organization
Automated stacking helps manufacturers create clearer material flow paths, optimize storage space, and improve overall workshop management.
Automatic Stacking vs Manual Handling
For concrete paver manufacturers, stacking is an important process that affects production efficiency, product protection, and labor requirements. Compared with traditional manual handling, the Automatic Cuber Stacker for Concrete Paver Blocks provides a more consistent and efficient solution for continuous production environments.
| Comparison | Manual Stacking | Automatic Cuber Stacker |
| Labor Requirement | Requires multiple workers for repeated lifting and arrangement | Automated handling reduces repetitive manual operations |
| Stacking Accuracy | Depends on operator experience and working conditions | Servo control provides stable positioning and consistent stacking |
| Production Stability | May be affected by worker speed and fatigue | Maintains a consistent handling cycle through PLC control |
| Product Protection | Manual movement may cause collision or edge damage | Smooth lifting and placement reduce handling impact |
| Production Integration | Difficult to connect with automated equipment | Can integrate with conveyors, shot blasting, polishing, and cutting systems |
Applications
The LEDROBIT Automatic Cuber Stacker for Concrete Paver Blocks is suitable for automated handling applications in concrete product factories.
It can be used for paver loading after molding, stacking after shot blasting, transfer before polishing, handling after cutting, and finished-product stacking before packaging and storage.
FAQ
1. What is an Automatic Cuber Stacker for Concrete Paver Blocks?
It is an automated machine used for picking up, transferring, and stacking concrete pavers through vacuum suction, servo control, and PLC automation.
2. Can it handle textured pavers?
Yes. The sponge suction pads are designed to adapt to different concrete paver surfaces, including textured products.
3. What is the maximum load capacity?
The standard LDPV300 supports a maximum load capacity of 300kg.
4. Can the suction pads be customized?
Yes. LEDROBIT can customize suction pads and vacuum lifting plates according to paver dimensions and stacking requirements.
5. Can it connect with other machines?
Yes. The machine can integrate with shot blasting, polishing, cutting equipment, and conveyor systems.
6. Does LEDROBIT provide CE-compliant machines?
Yes. LEDROBIT manufactures equipment according to applicable CE requirements and provides OEM and ODM services.
