Big Slab Loader Unloader

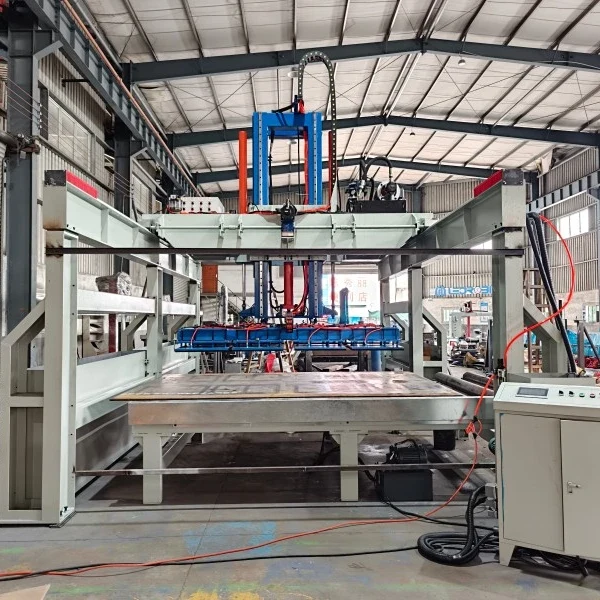

The LEDROBIT Big Slab Loader Unloader is an automatic vacuum handling system designed for large-format materials including stone slabs, metal plates, wooden boards, and other heavy sheet materials. With a maximum handling capacity of 3 tons and a standard suction size of 3500×2200mm, the LDLM9030 provides an efficient solution for loading, unloading, turning, and transferring oversized materials in industrial production environments.

Equipped with servo motor control and flexible vacuum lifting technology, the machine supports 90° vertical flipping and horizontal handling to meet different factory layouts. LEDROBIT provides CE-compliant manufacturing, OEM, and ODM customization services for global customers requiring automated material handling solutions.

Automatic Handling for Large Materials

The Big Slab Loader Unloader developed by LEDROBIT is designed to solve the challenges of moving oversized and heavy sheet materials in modern factories. Manual handling of large slabs often requires multiple operators and creates risks related to safety, positioning accuracy, and production efficiency.

The LDLM9030 uses a vacuum lifting system to automatically pick up, move, position, and unload large materials. It helps manufacturers reduce labor requirements while improving the consistency of material transfer operations.

Technical Specifications

Key Features

Large Capacity Vacuum Lifting

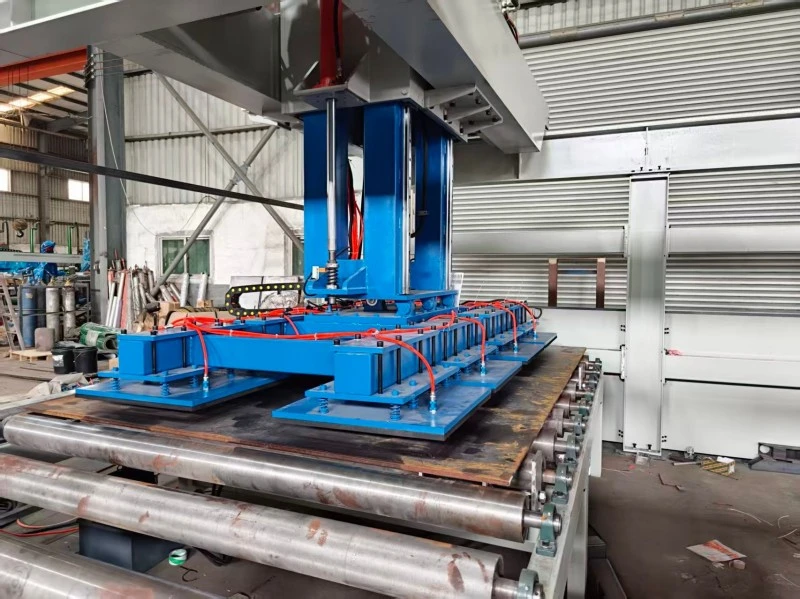

The LDLM9030 can handle large-format materials weighing up to 3000kg. The vacuum lifting system provides stable adsorption during transportation, helping prevent movement or damage caused by unstable manual handling.

The suction frame can be customized according to material dimensions, weight distribution, and surface conditions to achieve suitable lifting performance for different applications.

Flexible Turning and Placement Methods

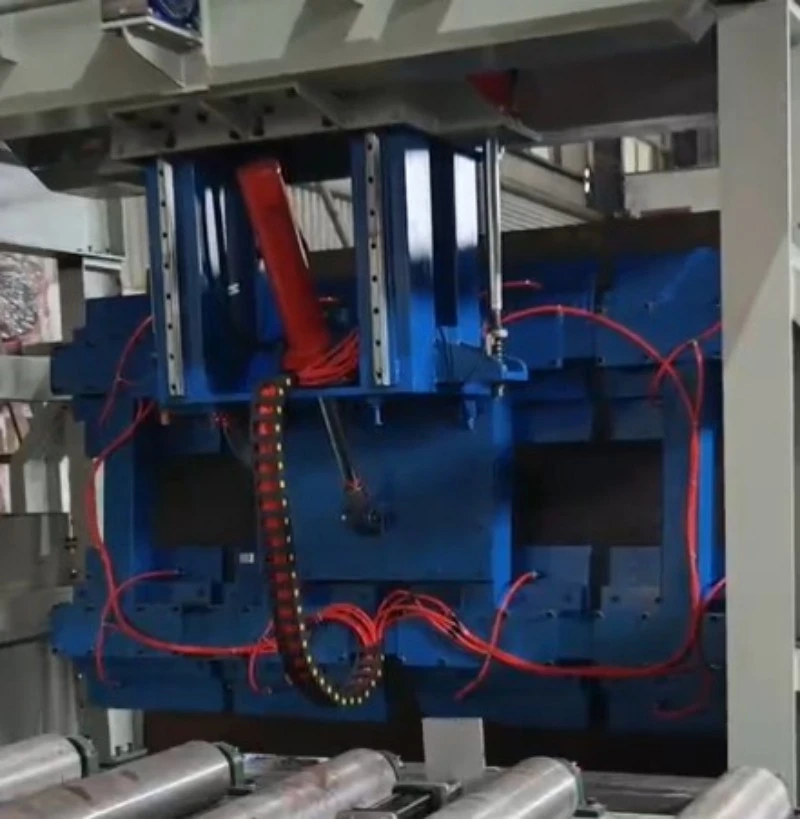

Different factories have different loading and storage requirements. The machine adopts a flexible turning structure that allows materials to be rotated 90 degrees vertically or transferred in a horizontal position.

This design helps connect different production processes, including storage, cutting, polishing, transportation, and packaging areas.

Servo Control for Accurate Movement

The servo motor drive system provides smooth operation and precise positioning during material movement. Compared with traditional manual handling methods, automated control improves repeatability and reduces positioning errors.

Suitable for Multiple Industries

Although mainly developed for large stone slab handling, the LDLM9030 can also be customized for other heavy sheet materials. It can be applied in stone processing factories, metal fabrication plants, ceramic slab production facilities, and wood processing industries.

Easy Integration with Existing Workshops

Factory layouts vary depending on production equipment and available space. LEDROBIT can provide customized structures according to workshop conditions, including an optional crossbeam-free design for factories using overhead cranes.

Complete Material Transfer System

The machine can work together with large slab roller racks and other production equipment to create a complete automatic transfer system. It helps connect material storage, processing equipment, and transportation areas into a smoother workflow.

Customized Manufacturing and CE Compliance

LEDROBIT provides OEM and ODM services including structural design, vacuum system configuration, control system adjustment, and production line integration.

All equipment is manufactured according to applicable CE standards to meet international market requirements.

Applications

The LEDROBIT Big Slab Loader Unloader is suitable for factories that need automatic handling of large and heavy sheet materials.

Stone Processing Factories

The machine supports handling of marble slabs, granite slabs, quartz slabs, and ceramic slabs during storage, cutting, polishing, and finishing operations.

Metal Plate Handling

For metal processing applications, the vacuum lifting system helps move large plates safely between production areas.

Wood Board Transportation

The equipment can be customized for large wooden boards and panels requiring efficient movement in manufacturing facilities.

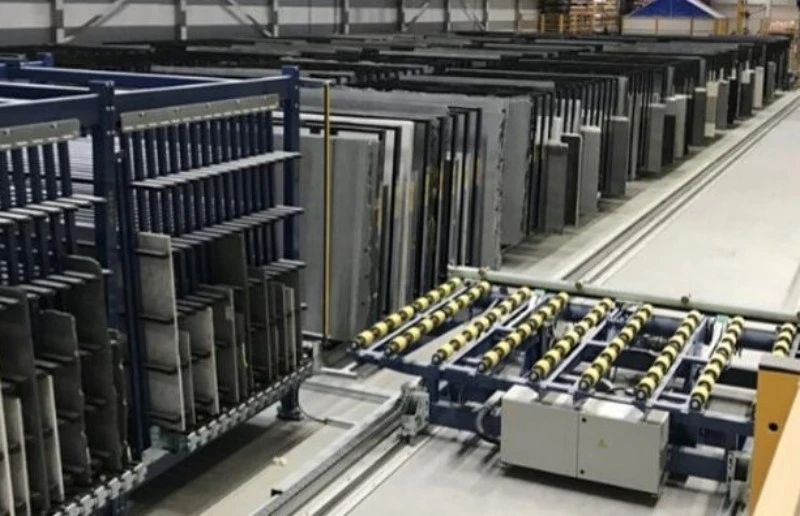

Automatic Storage Systems

The machine can connect with storage racks and transportation systems to improve material organization and reduce manual transfer processes.

What Buyers Need to Know Before Purchasing

When selecting a Big Slab Loader Unloader, buyers usually need to consider material size, loading weight, surface condition, workshop layout, and connection with existing production equipment. Providing these details helps LEDROBIT recommend the most suitable configuration for each application.

Confirm Material Size and Maximum Weight

The first step is to check the maximum length, width, thickness, and weight of the materials to be handled. The LDLM9030 standard configuration supports large materials up to 3500×2200mm and a maximum loading capacity of 3000kg. Customized solutions are available for different sizes and load requirements.

Check Material Surface Conditions

Different materials have different surface characteristics. Stone slabs, metal plates, wooden boards, and ceramic panels may require different suction frame designs. LEDROBIT can adjust the vacuum lifting system according to material surface conditions and handling requirements.

Consider Factory Space and Production Flow

Before installation, buyers should provide workshop layout information, existing equipment positions, transportation routes, and lifting height requirements. This allows the machine structure and movement range to be designed for better integration with the production line.

Choose the Right Handling Method

The LDLM9030 supports both 90° vertical flipping and horizontal flat handling. Buyers can select the suitable operation method according to storage requirements, processing direction, and downstream equipment connection.

Request Customized Configuration and Quotation

For an accurate quotation, customers should provide material type, maximum dimensions, weight information, daily handling quantity, working environment, and required automation level. LEDROBIT can provide OEM and ODM solutions based on specific project requirements.

FAQ

1. What is a Big Slab Loader Unloader?

It is an automatic handling machine designed for lifting, moving, positioning, and unloading large-format materials. The LDLM9030 uses vacuum suction technology to improve handling efficiency.

2. What is the maximum load capacity of LDLM9030?

The machine can handle materials weighing up to 3000kg.

3. What size materials can the machine handle?

The standard handling size reaches 3500mm in length and 2200mm in width. The suction frame and structure can be customized according to specific requirements.

4. Can the machine rotate large slabs?

Yes. The LDLM9030 supports 90° vertical flipping and horizontal flat handling to match different production processes.

5. What materials can the equipment handle?

The machine can handle stone slabs, metal plates, wooden boards, ceramic slabs, and other compatible sheet materials.

6. Can LEDROBIT customize the equipment?

Yes. LEDROBIT provides OEM and ODM customization according to material size, factory layout, handling requirements, and production line conditions.

7. Does LEDROBIT provide CE-compliant equipment?

Yes. LEDROBIT manufactures the LDLM9030 according to applicable CE standards for international customers.
