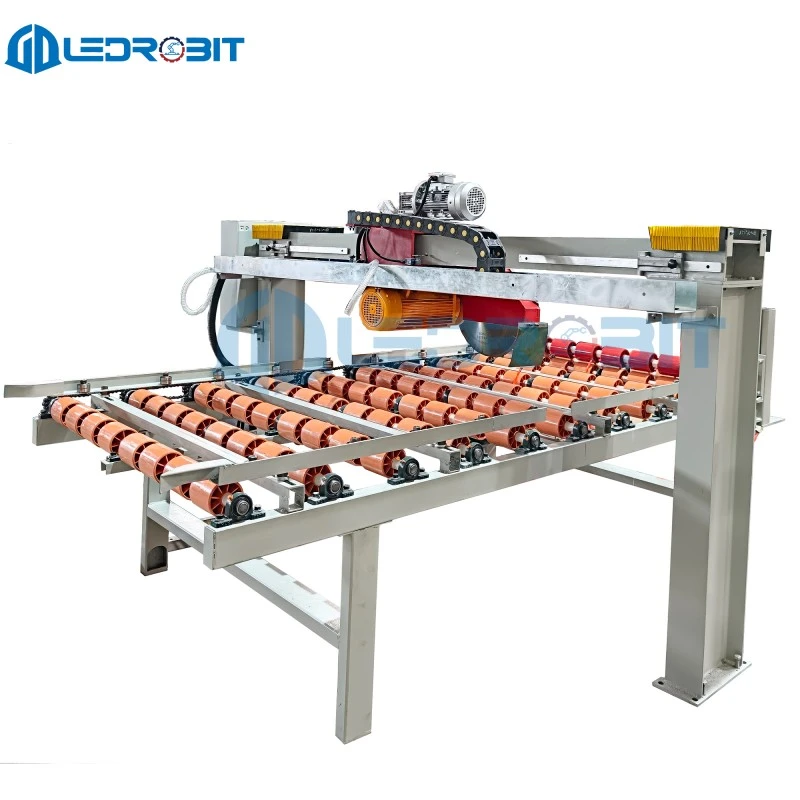

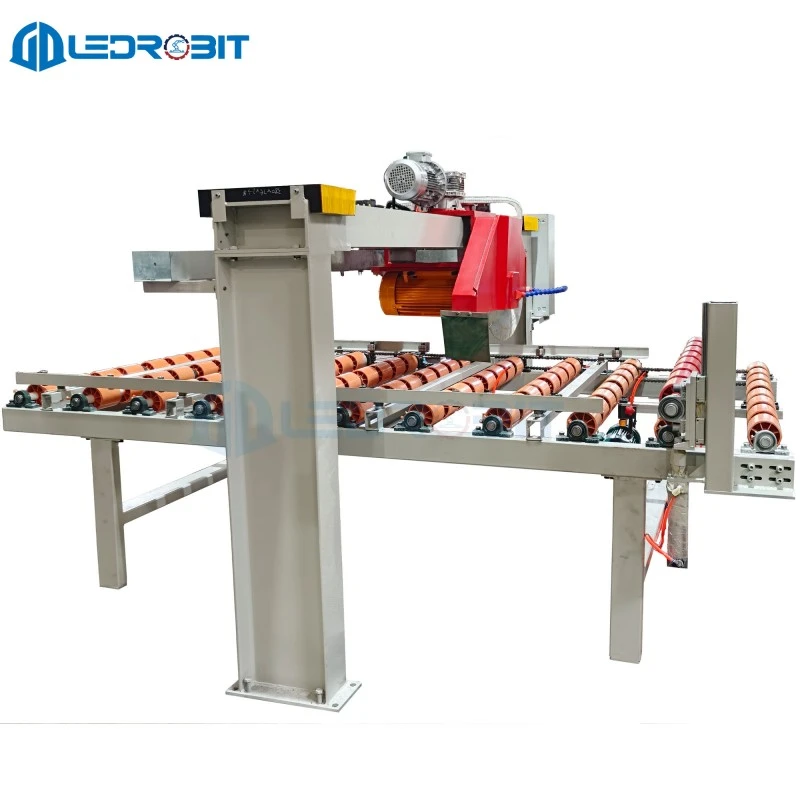

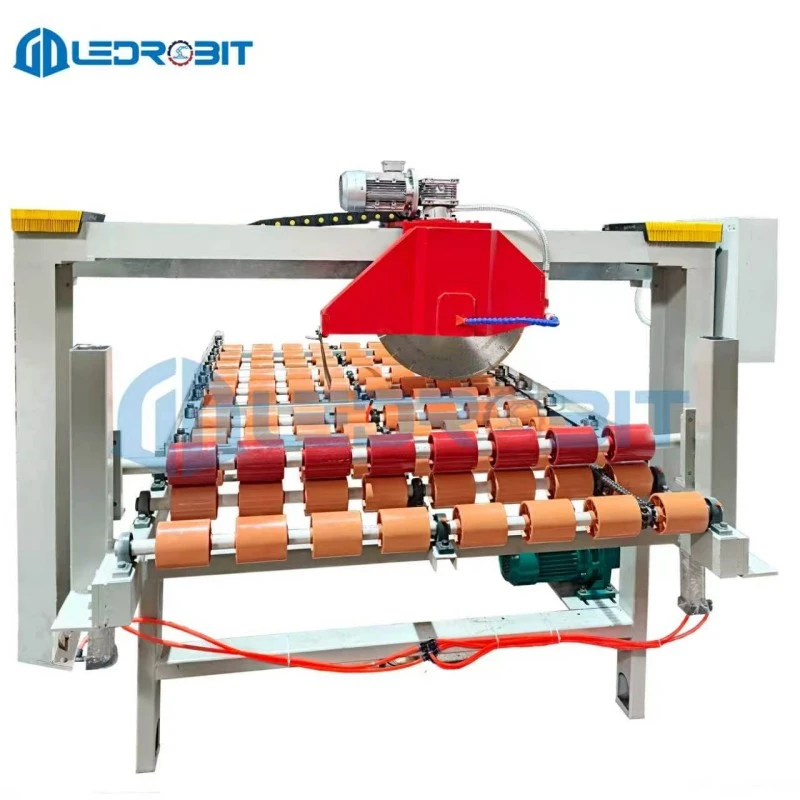

Horizontal Splitting Machine

The Horizontal Splitting Machine is suitable for natural stone, engineered stone, cement bricks, and foamed ceramics. With adjustable conveyor speed, customizable blade configuration, and flexible processing dimensions, it provides an efficient solution for factories requiring thickness reduction, layer splitting, and continuous material processing.

Ledrobit LD-1200-01 adopts a heavy-duty structure and fully automatic operation mode. The machine supports customized production requirements, OEM and ODM cooperation, and is manufactured according to applicable CE requirements for international stone processing applications.

Horizontal Splitting Process

Continuous Through-Feed Cutting

The machine adopts a conveyor-fed working method. Materials are continuously transported into the cutting area, where the horizontal saw blade performs layer separation before the finished pieces move to the next processing stage.

This continuous structure reduces manual intervention during cutting and helps maintain a stable production rhythm for industrial processing environments.

Thickness Reduction and Layer Separation

Unlike conventional vertical cutting equipment, this machine is designed specifically for horizontal slicing. It can divide thick slabs or blocks into thinner layers according to production requirements.

This makes it suitable for applications where material utilization, layer thickness control, and continuous processing efficiency are important.

Material Compatibility

Processing Different Block and Slab Materials

The Horizontal Splitting Machine is designed for multiple material applications, including natural stone, artificial stone, cement bricks, and foamed ceramics.

The flexible structure allows stone processors and building material manufacturers to use one equipment platform for different production materials, reducing the need for separate machines for each material type.

Cutting Configuration

The standard configuration includes one saw blade for horizontal splitting operations. According to production requirements, multiple blade configurations can be customized to achieve simultaneous multi-layer cutting.

Multi-blade solutions can help improve output efficiency for factories requiring higher processing capacity or multiple layer separation in one pass.

Automatic Operation System

The conveyor speed can be adjusted from 0 to 3 m/min according to material characteristics, cutting requirements, and production conditions.

Adjustable feeding speed allows operators to balance cutting quality and processing efficiency when working with different materials and thickness requirements.

Technical Specifications

Note: Final specifications including processing dimensions, blade quantity, voltage configuration, and production capacity can be customized according to customer requirements.

Product Features

Specialized Horizontal Layer Cutting

The Horizontal Splitting Machine is developed specifically for horizontal layer separation instead of traditional vertical cutting operations. It is suitable for factories that need to divide thick stone blocks or slabs into thinner layers for further processing.

The horizontal cutting structure helps manufacturers achieve more flexible thickness processing and provides an alternative solution for stone and building material production lines.

Automatic Continuous Production

The machine adopts a fully automatic working mode, including material feeding, cutting, and continuous discharge. The automatic operation reduces manual intervention at the cutting section and helps improve production consistency.

The continuous through-feed design makes the equipment suitable for integration into industrial production lines requiring stable processing cycles.

Flexible Conveyor Speed Adjustment

The conveyor speed can be adjusted between 0 and 3 m/min according to material hardness, cutting thickness, and production requirements.

This adjustment capability allows operators to optimize the balance between processing efficiency and cutting quality for different materials.

Custom Blade Configuration

The standard machine is equipped with one saw blade. For customers requiring higher production capacity, multiple blade configurations can be customized for simultaneous layer cutting.

The customized blade arrangement helps meet different processing targets, including multi-layer separation and higher output requirements.

Heavy-Duty Structure for Stable Cutting

With a total power of 36 kW, a machine weight of approximately 6.5 tons, and a robust frame structure, the equipment provides stable support during continuous cutting operations.

The rigid structure helps reduce vibration during processing and supports consistent cutting performance for industrial applications.

Custom Processing Dimensions

The standard model supports processing sizes up to 700 × 1300 mm. Processing width, length, blade configuration, and machine layout can be customized according to specific workpiece requirements.

This flexibility allows the equipment to be adapted for different production environments and material sizes.

Product Comparison

For manufacturers processing thick slabs or blocks, choosing the right cutting method affects production efficiency, material utilization, and automation level. The following comparison shows the differences between traditional manual splitting, conventional cutting equipment, and Ledrobit automated horizontal splitting solutions.

Applications

The Horizontal Splitting Machine is mainly used for horizontal slicing and layer separation of stone and building materials.

It is suitable for natural stone processing factories, engineered stone manufacturers, cement brick producers, foamed ceramic manufacturers, and other material processing facilities requiring thickness reduction or layer separation.

The machine can be applied in production processes involving thick block splitting, slab layer processing, material thickness adjustment, and automated continuous cutting operations.

With customizable dimensions and blade configurations, the equipment can be adapted to different production requirements and workshop layouts.

Customization and Cooperation

Production Requirements Customization

Ledrobit provides customized solutions according to customer requirements, including processing size, blade quantity, conveyor configuration, machine dimensions, voltage standards, and production capacity.

The equipment can be configured for different materials, production speeds, and factory layouts to meet various industrial applications.

OEM and ODM Support

Ledrobit supports OEM and ODM cooperation for distributors, engineering companies, and overseas brands. Customized equipment solutions can be developed according to customer specifications and market requirements.

The machine is manufactured according to applicable CE requirements and can be supplied for international stone and building material processing projects.

FAQ

What materials can this machine process?

The machine can process natural stone, engineered stone, cement bricks, and foamed ceramics in slab or block form.

What is the difference between horizontal splitting and normal cutting?

Horizontal splitting cuts materials along a horizontal plane, allowing thick slabs or blocks to be divided into thinner layers. It is designed for layer separation applications rather than standard vertical cutting.

Is the machine fully automatic?

Yes. The equipment operates automatically through continuous conveyor feeding, cutting, and material discharge.

Can the number of blades be customized?

Yes. The standard configuration includes one saw blade, while multi-blade configurations can be customized according to production requirements.

Can the processing size be customized?

Yes. Processing dimensions, machine layout, and related configurations can be adjusted according to customer workpiece requirements.

Is the machine CE compliant?

Yes. The equipment is manufactured according to applicable CE requirements and supports international market applications.

Contact Ledrobit

If you need an automated solution for horizontal layer cutting and material splitting, Ledrobit can provide a customized Horizontal Splitting Machine according to your production requirements.

Ledrobit provides equipment customization, OEM and ODM cooperation, and complete technical support for global customers.
