Marble Resin Line

The Marble Resin Line is developed for marble processors and natural stone manufacturers that require stable resin treatment performance and higher production efficiency. Instead of transferring slabs manually between separate machines, the integrated system connects each process stage through conveyor tables, lifting systems, and automated handling equipment.

Ledrobit provides customized production line solutions according to slab size, production capacity, workshop layout, and processing requirements. The equipment supports OEM and ODM cooperation and is manufactured according to applicable CE requirements for international stone processing projects.

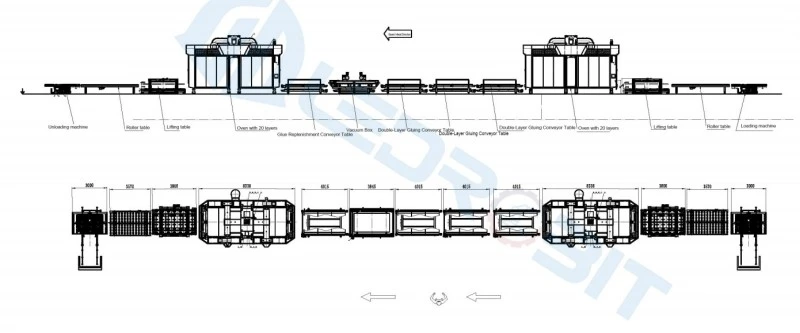

Integrated Resin Treatment Process

Continuous Processing From Loading to Unloading

The production line combines slab loading, conveying, heating, vacuum resin treatment, resin replenishment, gluing, and unloading into one connected system.

This integrated structure reduces repeated manual transfer between individual machines and helps maintain a more stable production rhythm during marble resin processing.

Automatic Material Transfer

Roller tables, lifting tables, and conveyor sections work together to move slabs between different processing stations. Automated transfer helps reduce handling requirements and improves the consistency of slab movement throughout the production process.

Vacuum Resin Treatment

Improved Resin Penetration Process

The vacuum box is an important section of the production line and is designed to support resin treatment for marble and natural stone slabs.

Vacuum processing helps resin enter stone structures more effectively according to the selected resin type and production parameters, supporting more consistent treatment results.

Suitable for Different Stone Materials

The system is mainly designed for marble and natural stone processing applications where resin reinforcement, surface treatment, and production consistency are important.

Heating and Curing System

Two 20-Layer Ovens

The line includes two heating ovens, with each oven providing a capacity of 20 layers. The oven configuration supports continuous production and provides dedicated space for heating and resin treatment processes.

The heating parameters can be customized according to slab specifications, resin characteristics, production requirements, and customer process conditions.

Automatic Gluing Section

Double-Layer Glue Application

The production line includes double-layer gluing conveyor tables and a glue replenishment conveyor table. These sections allow resin-related operations to be completed within the same production flow.

By combining multiple resin treatment steps in one system, factories can reduce unnecessary slab movement and improve process connection between different production stages.

Technical Parameters

Note: Final specifications including machine dimensions, production speed, slab size, heating parameters, and electrical configuration can be customized according to customer requirements.

Production Upgrade Solution

From Individual Machines to Integrated Production Line

Many stone processing factories still use separate machines for heating, resin treatment, and gluing processes. This production method requires manual slab transfer between different sections, which may increase handling time and make process control more difficult.

Ledrobit provides an integrated Marble Resin Line solution that connects loading, heating, vacuum treatment, resin replenishment, gluing, and unloading into one continuous workflow.

By upgrading from independent equipment to an automated production system, factories can improve process connection, reduce repeated manual operations, and create a more organized resin treatment workflow.

Product Comparison

Different resin treatment methods have a direct impact on production efficiency, labor requirements, and process consistency. The following comparison shows the differences between traditional manual processing, semi-automatic equipment, and Ledrobit automated resin production solutions.

The automated structure of Ledrobit helps stone processors build a more consistent resin treatment process. The system can be configured according to different slab materials, production capacities, and factory requirements.

Applications

The Marble Resin Line is mainly used in marble and natural stone processing plants that require automatic resin reinforcement and surface treatment.

It is suitable for marble slab production, natural stone resin treatment, vacuum resin processing, stone glue replenishment processes, and continuous stone surface treatment production lines.

The system is especially suitable for stone manufacturers that process large quantities of marble slabs and need improved production consistency, reduced manual handling, and better connection between different treatment stages.

Customization and International Supply

Customized Line Configuration

Each stone factory has different production requirements. Ledrobit can customize the production line according to slab dimensions, factory space, production capacity, process sequence, heating requirements, and automation level.

Customization options include equipment arrangement, conveyor length, oven configuration, control system, electrical standards, and process integration.

OEM and ODM Cooperation

Ledrobit supports OEM and ODM cooperation for distributors, engineering companies, and overseas stone machinery brands. Customized solutions can be provided according to project requirements while maintaining international manufacturing standards.

The equipment is manufactured according to applicable CE requirements and can be adapted for different market standards and customer applications.

FAQ

What is the main function of the Marble Resin Line?

The system is designed to automatically complete marble and natural stone resin treatment processes, including loading, heating, vacuum resin treatment, glue replenishment, gluing, and unloading.

Why use an automatic resin treatment production line?

An automatic production line helps reduce manual slab transfer between different processing stages and provides a more continuous and organized workflow for stone factories.

How many heating ovens are included in this system?

The standard configuration includes two 20-layer ovens. The heating system can be customized according to production requirements and process conditions.

Can the line be customized for different factory layouts?

Yes. Ledrobit can customize machine arrangement, conveyor sections, production capacity, and control solutions according to the customer's workshop conditions.

Is the equipment suitable for export markets?

Yes. The equipment is manufactured according to applicable CE requirements and supports customized configurations for international projects.

Does Ledrobit provide OEM and ODM services?

Yes. Ledrobit provides OEM and ODM cooperation for overseas distributors, engineering companies, and stone machinery brands.

Contact Ledrobit

If you are looking for an automated solution for marble and natural stone resin treatment, Ledrobit can provide a customized Marble Resin Line according to your production requirements.

Ledrobit supports complete project cooperation, including production line design, equipment customization, OEM and ODM service.
